Accreditations

BSI Kitemark: Internet of Things - Commercial; Secure Digital Applications.

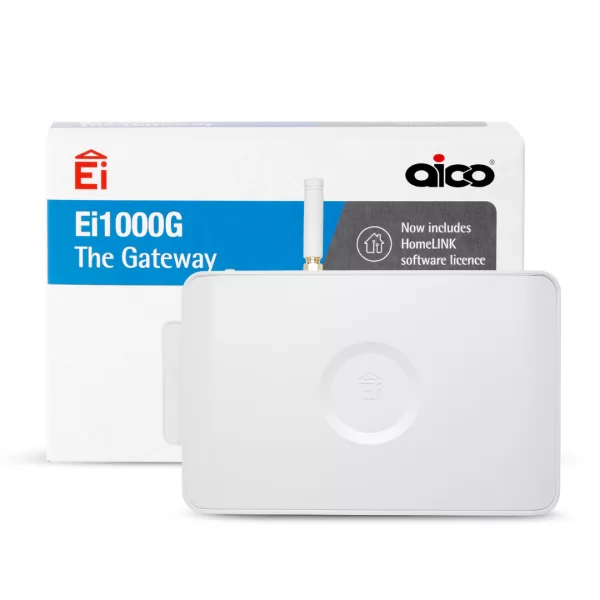

Ei1000G The Gateway

Aico’s alarms and sensors connect with the Gateway, creating an innovative and award-winning system that provides insights into the health and safety of connected homes.

The Ei1000G uses wireless interconnection technology to link every alarm and sensor in a property to give you a full picture via the online HomeLINK Portal.

Maintaining data for properties is complex and time-consuming. Gaining access to every property can be an issue.

The reassurance of your alarms working to protect your residents is vital, as well as knowing that your housing portfolio is not at risk of developing poor indoor environmental conditions, such as damp and mould.

  • Enables remote management of Radio Frequency alarms and devices
  • Mains powered with rechargeable battery back-up
  • Easy setup and configuration
  • Compatible with HomeLINK, SmartLINK & RadioLINK+ technology
  • 10-year product life
  • Transmits data over GSM network but not provider dependent
  • Bidirectional data encryption
  • Unique House Coding feature

Compatible with:

  • No braodband or WI-FI needed
  • SmartLINK & HomeLINK compatible
  • Forecast replacmement & maintenance
  • Easy-to-use Portal
  • Real-time reporting
  • No property access required once installed
  • Email & SMS notifications
  • Reduce costs & improve efficiency
  • Complaint with standards & regulations e.g. PAS 2035 & The Homes Act
  • Improved health of residents & their homes
  • Assist to acheive NetZero & sustainability goals

Product Description

Which Aico devices are compatible with The Gateway?

The Gateway is designed for use with the Aico HomeLINK, RadioLINK+ and SmartLINK devices. It provides a hub to transfer information from the all connected alarms and sensors to a portal over the GSM network.

Data and Security

To ensure the safety of the data, it is encrypted in both directions during transmission using AES128 encryption. In addition, for ease of installation, the SmartLINK App (available on Android & iOS) provides a step by step guide for the installation of the Gateway and the Aico RF devices.

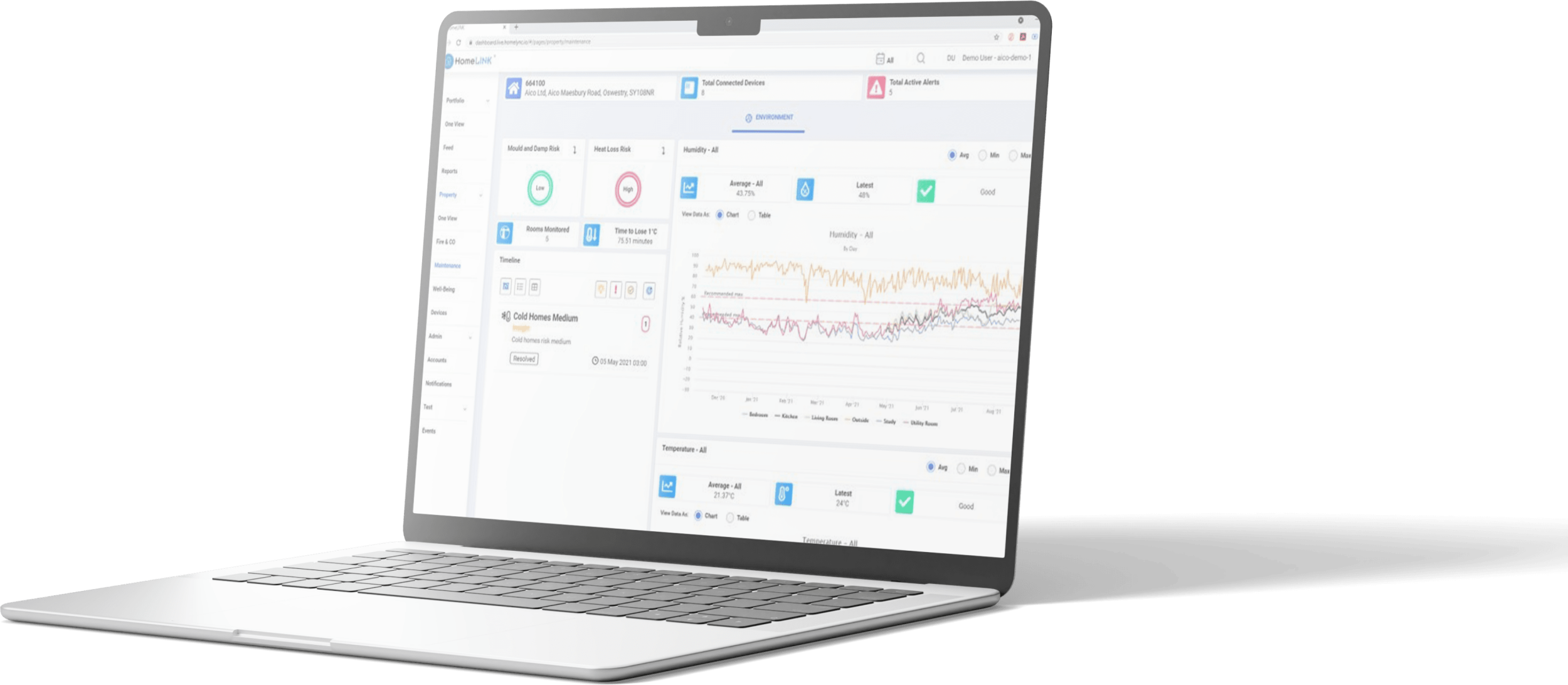

All data sent is accessible from a web portal where alerts can be set up to be delivered by email or SMS. Reports can also be run from the web portal to facilitate the management of the Alarms fitted. The data on the portal is securely stored and is only available to the associated client.

What alarm events does The Gateway report?

Connected devices’ events are processed by The Gateway as they occur and cover events* such as:

  • Fire Alarm
  • CO level detected (High, Medium, Low)
  • Button Test
  • Mains Absent Fault
  • Head OK
  • Head Removed
  • End of life

* Reportable events are model dependent

Technical Specification

  • Product Life: 10 years
  • Supply Voltage: 230V AC, 50Hz
  • Battery back-up: Rechargeable battery
  • Power consumption: 40mA
  • RF frequency: 868MHz band (1% duty cycle)
  • RF Range: > 100 Metres in free air
  • RF Protocol type: Mesh architecture
  • RF Protocol: SmartLINK
  • RF System size: Up to 12 RF devices
  • Data upload: via 2G GSM network (Roaming SIM card supplied)

  • Modem: Quad-Band GPRS modem
  • Data storage: Cloud based
  • Indicators: Green LED – Power
  • Blue LED – RF communication
  • Yellow LED – GSM communication
  • Normal Operating and Storage Temperature Range: -10°C to 40°C
  • Normal Operating and Storage Humidity Range: 15 % to 95 % Relative Humidity (non condensing)

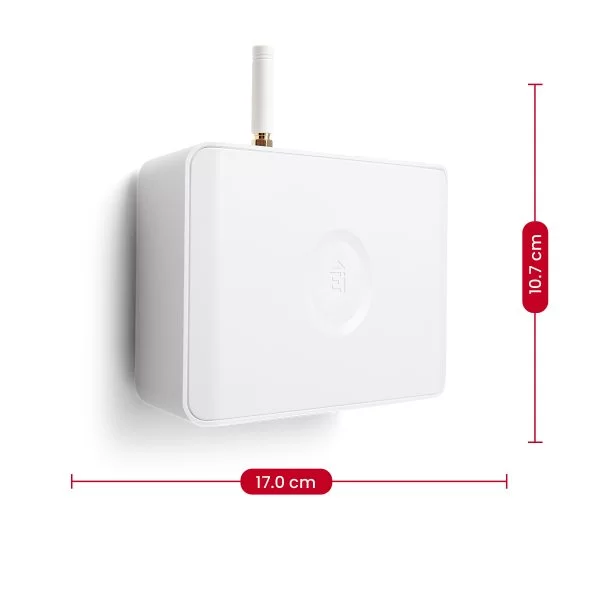

  • Dimensions: Product – 175mm x 124mm x 81mm
  • Weight: 550g
  • Warranty: 5 years

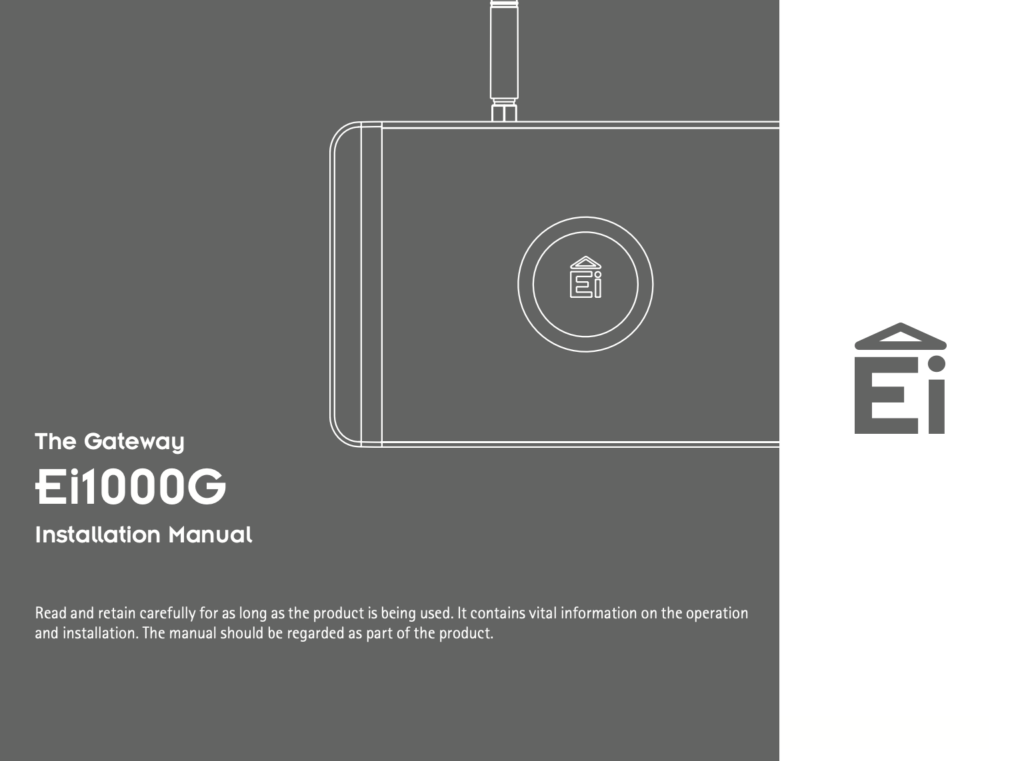

Product Downloads
