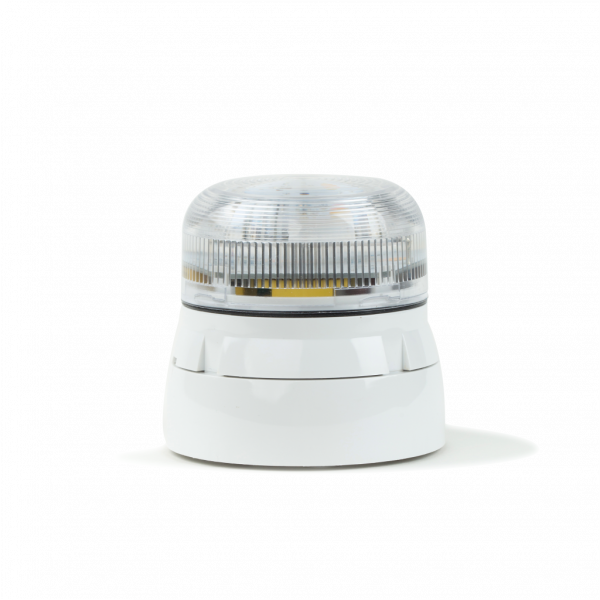

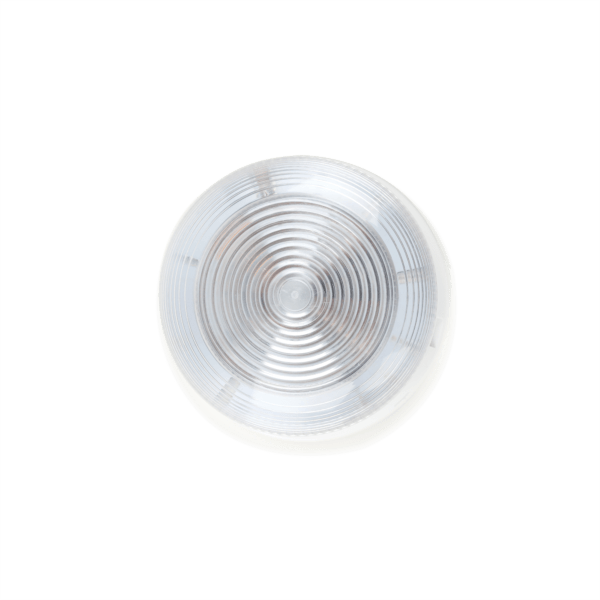

SAB300C Clear Strobe Light

  • Mains powered strobe clear light
  • Activated via a relay module
  • For indoor or outdoor use

Product Description

The SAB300C is an alarm accessory that is designed to give extra warning if a properties alarm system has been triggered.

The Strobe connects the rest of the alarm system via a Relay Module such as the Ei428 or the Ei128RBU. If the alarms trigger, the Relay will send out a signal that activates the Strobe.

This Strobe is suitable for indoor or outdoor spaces and is also available in red.

Operation of the SAB300C

  • When the Relay contacts switch (when the alarms are activated), they will power the strobe, which will flash at 0.9Hz.

Technical Specification

  • 230v AC powered, 15mA power consumption.
  • CE marked.
  • Can be used with the mains range of smoke and heat alarms via an Ei128R, eI128RBU, Ei158R or Ei428 relay to provide a visual warning of an alarm condition.
  • Central grommet cable entry and detachable mounting base with 4 x 8mm side knockout points.
  • 2 x 4.5mm screw fixing slots – 50-60mm centres.
  • Maximum cable size – 1.5mm² (recess mounting).
  • IP65 rated for indoor or outdoor use.
  • 3 watt Xenon tube, 0.9Hz flash rate.
  • Temperature range: -20°C to +40°C.
  • Fixing methods: BESA conduit box,  single gang wiring box or direct.
  • Dimensions: Base diameter 85mm x height 81mm.
  • Available with red or clear lens (quote SAB300C for clear, SAB300R for red).
  • 5 year guarantee.

Downloads

SAB300 Instructions

Download

SAB300 Data Sheet

Download
