Compatible with:

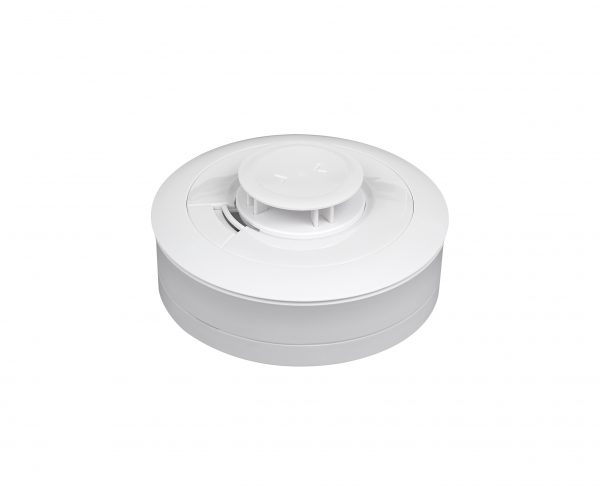

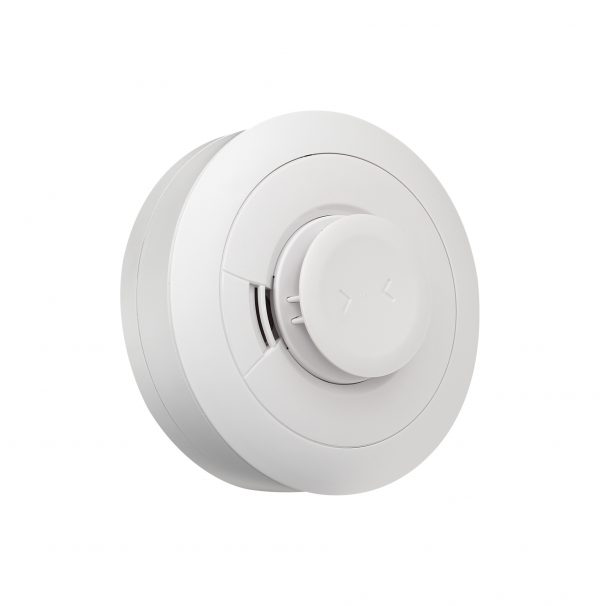

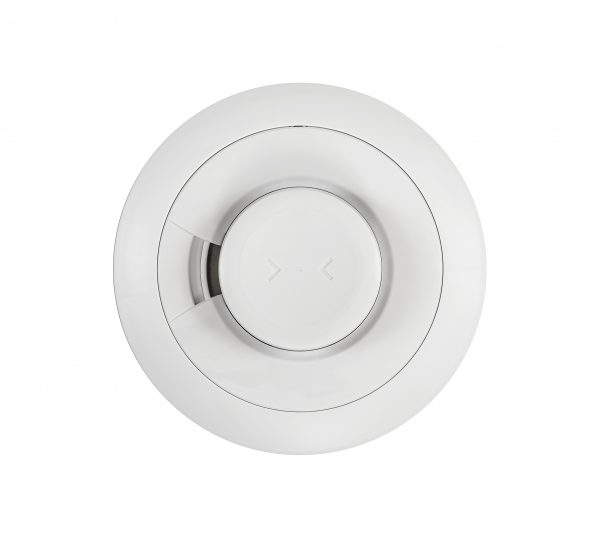

Ei630iRF RadioLINK+ Battery Heat Alarm

The Ei630iRF is a battery-powered Heat Alarm, powered by a 10 year life sealed in lithium cell. It is able to wirelessly interconnect with any other RadioLINK, RadioLINK+ and SmartLINK products.

Heat sensor – responds to heat build-up from large flaming fires (triggers at 58°C)
10 year lithium battery powered
Large test button and twist on base with an anti-tamper locking option.
RadioLINK+ wireless interconnection
Grade F1 and compliant with Scottish legislation
Kitemarked to BS 5446-2:2003
5 year guarantee

Suitable For:

Product Description

Where Should the Ei630iRF Battery Heat Alarm be Sited?

The Ei630iRF Heat Alarm is powered by a lithium primary battery and is activated by heat from a fire, not smoke. This makes it ideal for kitchen installations where smoke alarms are prone to nuisance alarms. The thermistor will trigger the alarm when the activation temperature of 58ºC is reached.

Built-in RadioLINK+ Technology

The Ei630iRF Heat Alarm has built-in RadioLINK+ technology, and is able to wirelessly interconnect with any
other RadioLINK products.

Built-in AudioLINK+ Technology

This second iteration of the award-winning AudioLINK technology makes it simple to get real-time data from the Ei630iRF Heat Alarm via the AudioLINK+ app. The App generates a simple to read colour-coded report giving information on a range of alarm data, such as alarm activations, sensor status and record of testing.

Battery and Lifespan

The Ei630iRF is a battery powered Heat Alarm that contains a sealed in lithium battery that will last for the full 10 year life of the alarm.

Technical Specification

Sensor Type: Thermistor (Class A1 Detection)
Battery: 3v Lithium Battery (non-replaceable)
Product Life: 10 years
RF Frequency: 868Mhz band (1% duty cycle)
RF Power: +10dBm
Technologies: RadioLINK+, AudioLINK+ & Dust Compensation
Sound Level: 85Db at 3 meters

Visual Indicators: Power Up – Red & Amber LED / Standby – no coloured LEDs / Testing, Activation & Memory – Red LED / Faults – Amber LED / RF Transmission – Blue LED
Operating Temperature: -10°C to 40°C
Humidity Range: 15% to 95% Relative Humidity
Storage: 0°C to 35°C
Weights: 0.215 (product) / 0.255 (packaged)
Dimensions: Ei650i: 115mm x 55mm (product) / 121mm x 63mm x 148mm (packaged)
Warranty: 5-year (limited) warranty
