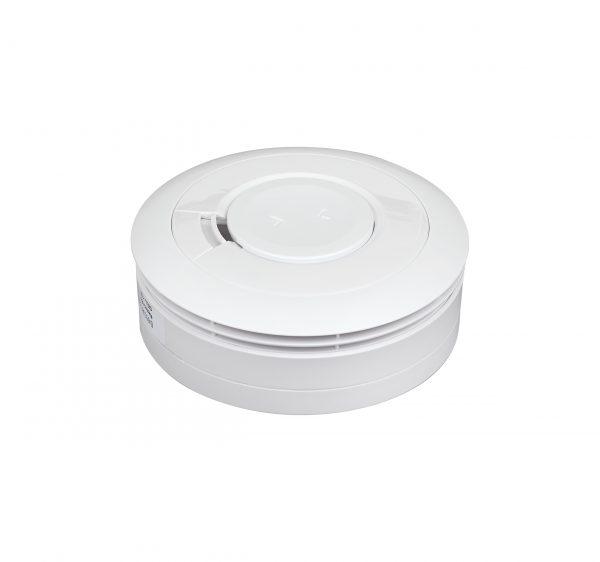

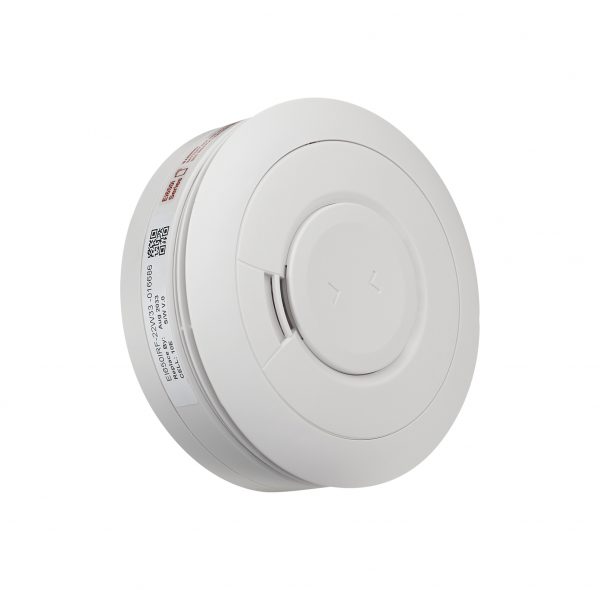

Ei650iRF RadioLINK+ Battery Optical Alarm

The Ei650iRF is a battery-powered Optical Smoke Alarm. It is able to wirelessly interconnect with any other RadioLINK, RadioLINK+ and SmartLINK products.

Optical sensor with dust compensation technology
Built-in AudioLINK+
Uses built-in RadioLINK+ technology to interconnect and for data extraction
Connects wirelessly with all other Aico wireless interconnection products
Battery powered with a sealed-in lithium battery
Easy to fit – twist on base and multi-fixings with an anti-tamper locking option
10-year life
Grade F1 and compliant with Scottish legislation
Kitemarked to BS EN 14604:2005

Find A Distributor

Compare Similar Products

Compare the Ei650iRF RadioLINK+ Battery Optical Alarm with other Aico alarm models

Rooms

Optical Sensor

Heat Sensor

CO Sensor

Environmental Sensor

Available Technologies

Power Type

Easi-fit Base Compatible

Dimensions

Standards

Lifespan

Battery

120x120x55mm

BS EN 14604:2005

10 years

Mains

155x155x65mm

BS EN 14604:2005

10 years

Mains

155x155x60mm

BS EN 14604:2005

10 years

Product Description

Contains an Optical Smoke Chamber

The Ei650iRF RadioLINK+ Optical Smoke Alarm is best for detecting slow, smouldering fires commonly produced by electrical fires or sofas and is less likely to react to cooking smells if fitted in the hallway next to the kitchen.

Battery and Lifespan

This battery powered alarm contains sealed in, tamper-proof lithium battery that will last for the full 10-year life of the alarm. The alarm is not powered until it is twisted on the mounting base, thus avoiding battery power consumption during storage and prior to installation.

Built-in RadioLINK+ Wireless Interconnection Technology

RadioLINK+ wireless interconnection technology is built-in to this alarm. RadioLINK+ uses Radio Frequency signals to link alarms together with added functionality. All RadioLINK+ alarms and devices should be House Coded together upon install.

Technical Specification

Sensor Type: Photoelectric (Optical Chamber)
Battery: 3v Lithium Battery (non-replaceable)
Product Life: 10 years
RF Frequency: 868Mhz band (1% duty cycle)
RF Power: +10dBm
Technologies: RadioLINK+, AudioLINK+ & Dust Compensation
Sound Level: 85Db at 3 meters
Visual Indicators: Power Up – Red & Amber LED / Standby – no coloured LEDs / Testing, Activation & Memory – Red LED / Faults – Amber LED / RF Transmission – Blue LED

Operating Temperature: -10°C to 40°C
Humidity Range: 15% to 95% Relative Humidity
Storage: 0°C to 35°C
Weights: 0.215 (product) / 0.255 (packaged)
Dimensions: 115mm x 50mm (product) / 150mm x 120mm x 56mm (packaged)
Warranty: 5-year (limited) warranty
