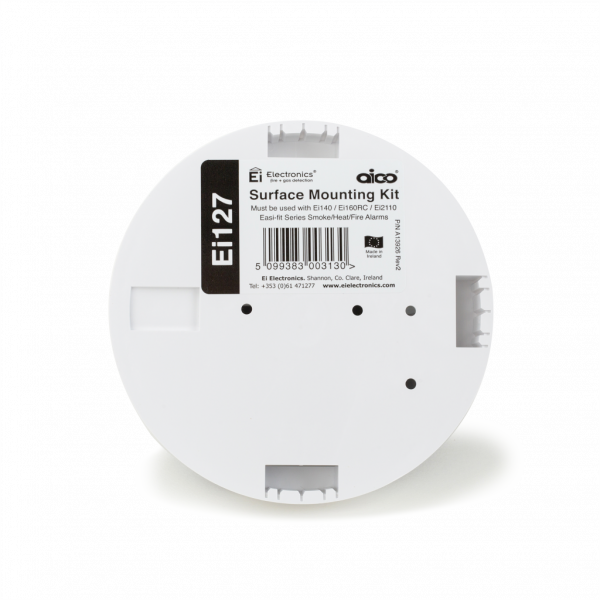

Ei127 Surface Mounting Kit

  • For use with the 3000, 2110e, 160e and 140RC Series smoke and heat alarms.
  • Fitted with a connector block for ease of wiring.
  • 3 trunking knockouts for surface wiring.

Product Description

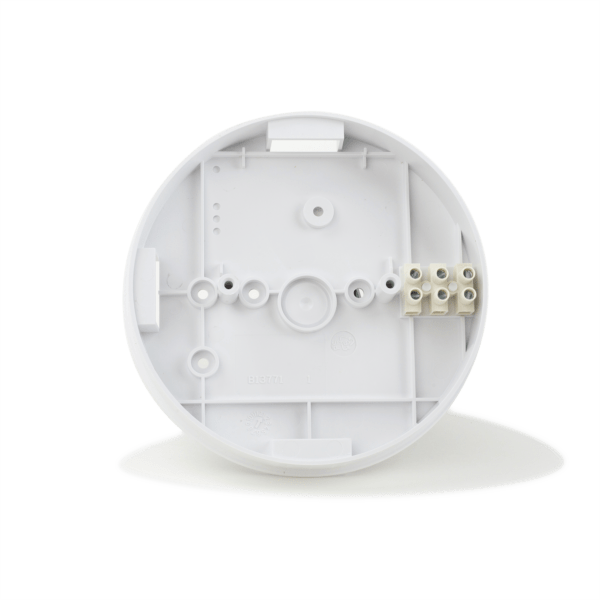

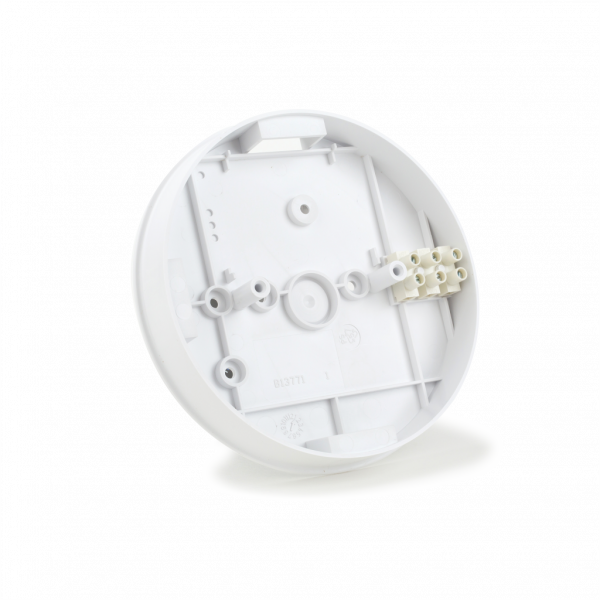

The Surface Mounting Kit allows additional space for wiring connections. It has a 3 way, fitted connector block for ease of wiring, along with 3 trunking knock outs for surface wiring.

This is particularly helpful if you are working on a concrete ceiling or tricky trucking.

Technical Specification

  • The Ei127 is designed for use with 30002110e160e and 140RC Series smoke and heat alarms (also when mounted on Ei168RC RadioLINK bases).
  • Fitted with a 3 way connector block for ease of wiring.
  • Standard mounting plate supplied with the alarm fixes to the Ei127 using the screws provided.
  • Features 3 x 16/25mm Trunking knock outs and a centre knock out for recessed wiring.
  • Dimensions: 135mm diameter x 20mm depth
  • Weight inclusive of packaging: 120g
  • Manufactured in Ireland

Downloads

Ei127 Data Sheet

Download

Ei127 Instructions

Download

The Surface Mounting Kit allows additional space for wiring connections. It has a 3 way, fitted connector block for ease of wiring, along with 3 trunking knock outs for surface wiring.

This is particularly helpful if you are working on a concrete ceiling or tricky trucking.

  • The Ei127 is designed for use with 30002110e160e and 140RC Series smoke and heat alarms (also when mounted on Ei168RC RadioLINK bases).
  • Fitted with a 3 way connector block for ease of wiring.
  • Standard mounting plate supplied with the alarm fixes to the Ei127 using the screws provided.
  • Features 3 x 16/25mm Trunking knock outs and a centre knock out for recessed wiring.
  • Dimensions: 135mm diameter x 20mm depth
  • Weight inclusive of packaging: 120g
  • Manufactured in Ireland
