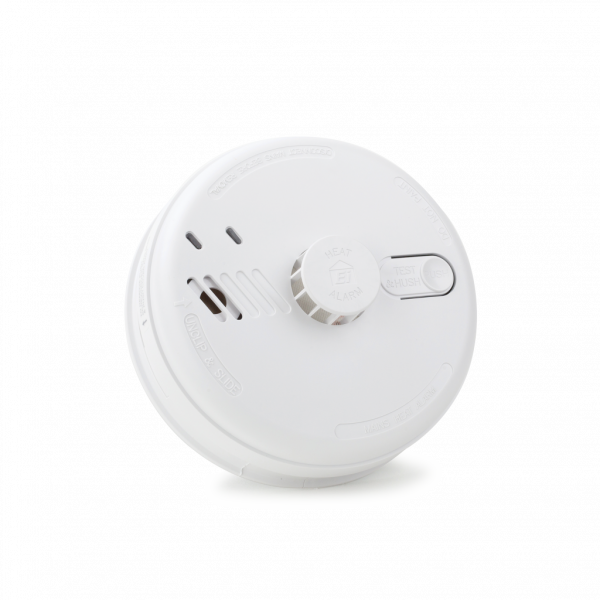

Ei144RC Heat Alarm

The Ei144RC Heat Alarm is a mains powered unit and can be interlinked with other Aico alarms through either a hard wired or wireless interconnection.

  • Mains powered with 9V Alkaline battery back-up
  • easi-fit base for quick and simple installation
  • 10-year life
  • Responds to heat build-up from large flaming fires
  • Heat sensor triggers at 58°C
  • Add an Ei168RC RadioLINK base for wireless interconnection
  • Compatible with other Aico mains powered devices
Suitable For:
Garage
Kitchen

Product Description

Power and Battery Back-up

The Ei144RC Heat Alarm is a mains powered alarm with a 9V Alkaline battery back-up and contains a thermistor that triggers when the temperature of 58ºC is reached.

As this alarm contains a 9V Alkaline battery back-up, this battery will need changing over the course of its 10-year life.

Alarm Siting

Different alarms sensors work best at detecting different types of fire and so should be sited in appropriate rooms throughout a property. Heat alarms are best at detecting large, fast flaming fires which are commonly caused by kitchen fires. The Ei144RC is suitable for: Kitchen and Garage

The Heat alarm will react to the heat in the Kitchen or Garage rather than smoke, making it more resistant to fumes, such as burnt toast and therefore less likely to false alarm.

easi-fit base

The alarm is supplied with an easi-fit base to make it as quick and simple to install.

RadioLINK Technology

As with the rest of the 140RC Series alarm the Ei144RC Heat alarm can be interconnected with other alarms and accessories through hard wire connection or, for less mess and disruption, by RadioLINK wireless interconnection.

Technical Specification

  • Sensor Type: Thermistor – Operates at 58°C
  • Supply Voltage: 230V AC, 50Hz
  • Battery Back-up: 9V Alkaline Replaceable
  • Sound Level: 85dB(A) at 3m
  • Operating Temperature: 0°C to 40°C
  • Humidity Range: 15% to 95% relative humidity
  • Button Test: Simulates a high temperature to check the Thermistor, electronics and horn
  • Plastic Material: UL 94 V0 flame retardant
  • Dimensions – Product: 150mm dia. x 60mm
  • Dimensions – Boxed: 155mm x 155mm x 70mm
  • Weight: 325g (product only), 350 (boxed)
  • Guarantee: 5 years
  • Approvals: BS 5446-2:2003
