Ei168RC RadioLINK Base

  • Mains powered base with rechargeable lithium cell back up
  • Add this to the 140RC series alarms for RadioLINK wireless interconnection
  • Compatible with other Aico wireless interconnection products
  • Eliminates tricky wiring runs
  • Saves time, mess and money
  • Makes it easier to add in new alarms and accessories

RadioLINK

Product Description

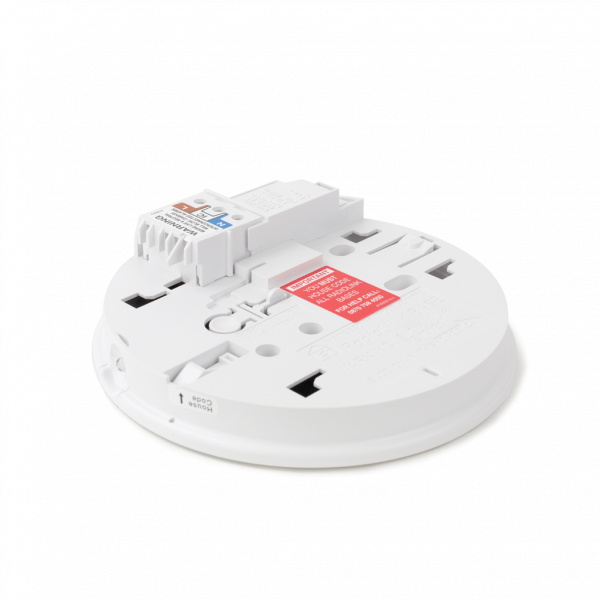

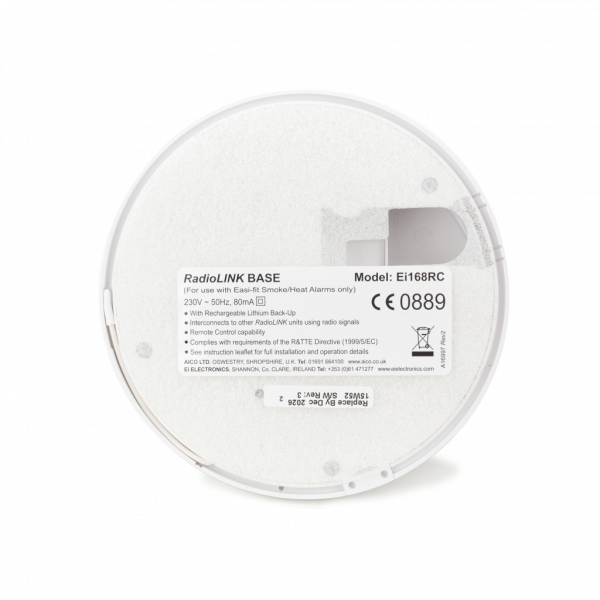

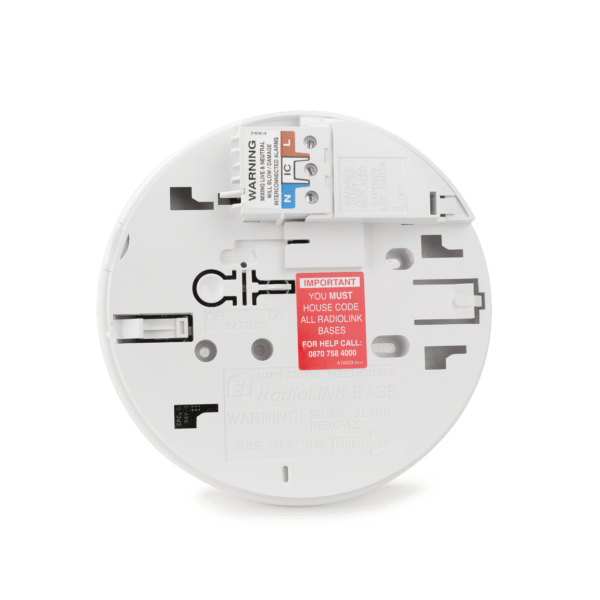

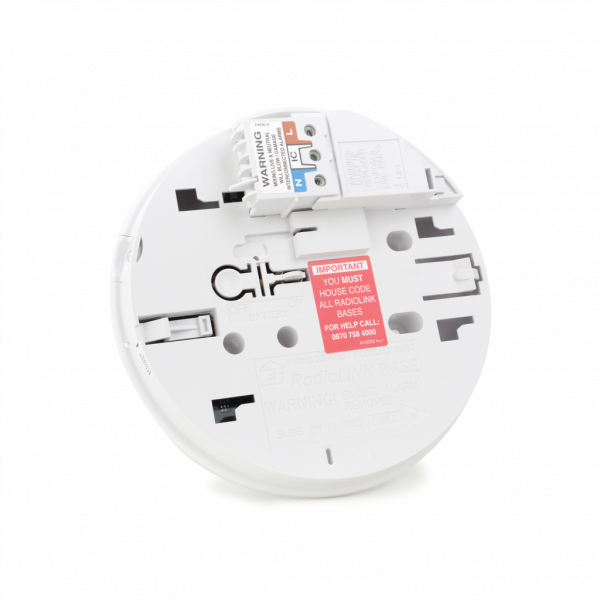

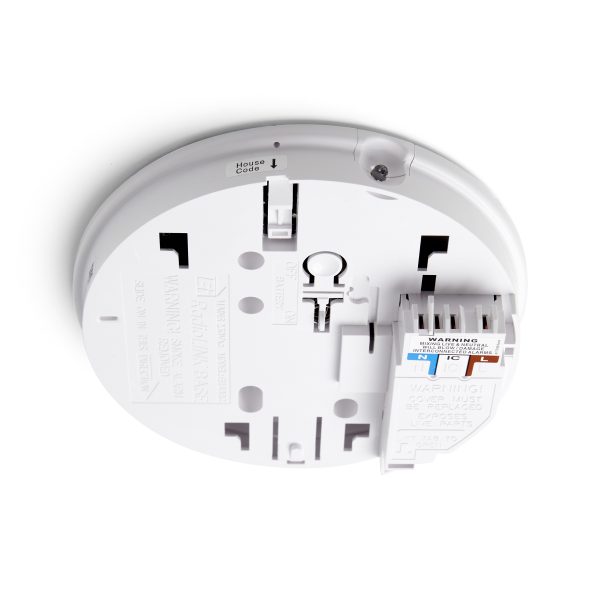

The Ei168RC RadioLINK Base is an easi-fit mounting plate with built-in RadioLINK. It provides wireless interconnect between alarms, i.e. when one alarm is triggered, all alarms in the system sound. It is mains powered unit with a rechargeable lithium cell back-up, to be used instead of the easi-fit base to enable the alarms to have RadioLINK capabilities. The Ei168RC RadioLINK base is compatible with the 140RC Series alarms – Ei146RCEi144RC & Ei141RC.

The 160e Series and Multi-Sensor Fire Alarm use a RadioLINK Module, Ei100MRF, directly into the head of the alarm to gain RadioLINK+ capabilities instead of a base.

Once all the alarms have been installed the RadioLINK system is secured by a special House Coding function to safeguard the system from interference from other RF systems.

The Ei168RC allows for easy expansion of an existing hard-wired interconnected system. A mixed wired and wireless system is often referred to as a hybrid system. To set a hybrid system up – Simply fit one Ei168RC base to an alarm in the existing alarms and any new alarms with Ei168RC bases. Once installation is complete House Code the alarms together into a system. If any alarm, hard-wired or wireless, is now triggered it will sound all the alarms in the system.

Technical Specification

  • Supply Voltage: 230V AC, 50Hz.
  • Battery Back-up: Rechargeable lithium.
  • RF Frequency: 868, 499Mhz RadioLINK protocol.
  • RF Power: +5dBm.
  • RF Protocol: Proprietary RadioLINK using multi-path, multi-repeater mesh architecture.
  • RF Range: 30 metres
  • System Size: 12 RadioLINK devices max.
  • Operating Temperature: 0 to 40°C. Storage – 0 to 35°C (in a dry area).
  • Humidity Range: 15% to 95% relative humidity.
  • Indicators: Blue LED for RF and fault signals.
  • Plastic Material: UL94VO flame retardant.
  • Dimensions – Product: 150mm dia. x 37mm (20mm installed).
  • Dimensions – Boxed: 153mm x 153mm x 40mm.
  • Weight: 235g (boxed).
  • Guarantee: 5 years.
  • Approvals: CE certified / EN300220-3 (RF) / 301498-3 (EMC).

Downloads

Ei168RC Data Sheet

Download

Ei168RC Instructions

Download
