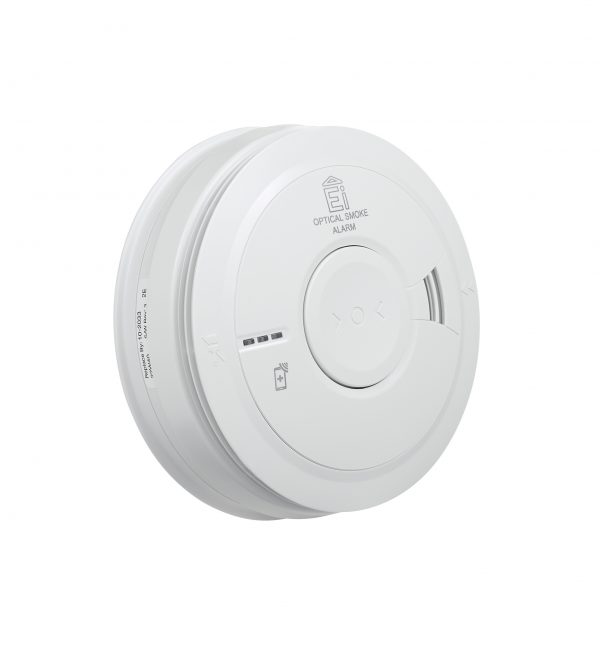

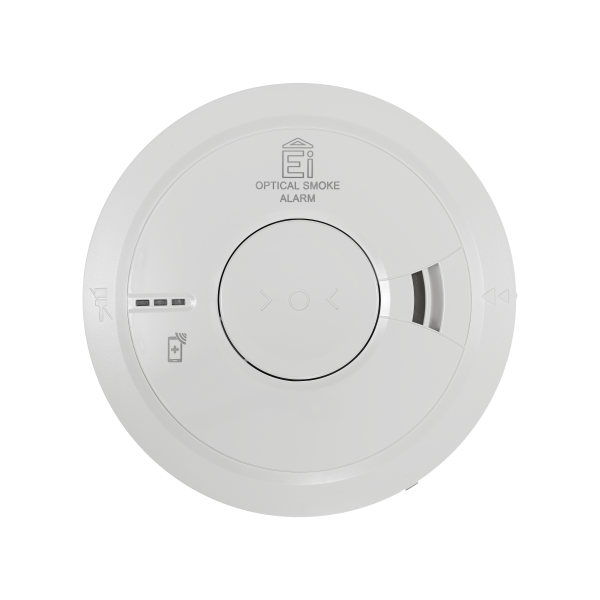

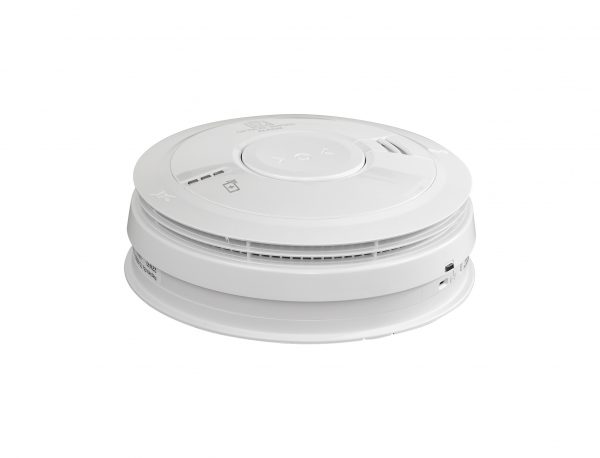

Ei3016 Optical Smoke Alarm

  • Contains a high performance optical sensor
  • Mains powered with 10 year rechargeable lithium cell back-up
  • Add an Ei3000MRF module for wireless interconnection and data extraction
  • AudioLINK data extraction technology
  • Compatible with other Aico mains powered devices
  • Dust compensation – unique self monitoring mechanism
  • easi-fit base
  • 10 year life
AudioLINK SmartLINK
Suitable for:
British Standards Code

Product Description

Tried and tested

The Ei3016 Optical Smoke Alarm contains our tried and tested high performance optical smoke sensor, which is best for detecting slow, smouldering fires. In addition, the smoke chamber design, integrated insect screen and unique automatic dust compensation reduce the risk of false alarms.

AudioLINK data extraction

The Ei3016 Optical Smoke Alarm contains AudioLINK technology, which allows you to extract real time data from the alarm using its sounder directly to a smartphone or tablet via an App. A simple to read report is generated displaying details such as activation dates, sensor status and alarm life, that can be emailed to help form part of property records.

SmartLINK compatible

The Ei3016 Optical Smoke Alarm is SmartLINK compatible, Simply plug in an Ei3000MRF module for wireless interconnection, data extraction and real-time notifications of alarm activations and events via the SmartLINK Gateway and Portal.

Dust Contamination

The alarm has a unique self-monitoring dust compensation mechanism incorporated into its software, which will allow the alarm to tolerate up to twice as much more dust contamination than a conventional optical alarm. The optical sensor chamber continually self-monitors minute changes in dust levels. If the dust accumulates to a certain level, the alarm automatically recalibrates the alarm trigger point.

Future Proofing

The Ei3016 Optical Smoke Alarm Heat Alarm is fully compatible with all other Aico alarms and accessories whether a system needs upgrading or an existing system needs expanding; and works with either hard-wired, RadioLINK or hybrid interconnecting systems.

Technical Specification

  • Sensor Type: Optical
  • Supply Voltage: 230V AC, 50Hz
  • Power Consumption: 0.25W (standby)
  • Battery Back-up: Rechargeable lithium cells
  • Sound Level: 85dB(A) at 3m
  • Button Test: Checks sensor, electronics and sounder
  • Silence Function: Silences alarm for 10 minutes
  • Silence Function: Silences fault beeps for 12 hours
  • AudioLINK: Enabled
  • SmartLINK: Compatible via the Ei3000MRF Module
  • Indicator LED’S: Green – power. Red – alarm/ silence mode/ memory. Yellow – fault event
  • Memory: Records last alarm event
  • Fixing: easi-fit base (supplied)
  • Operating Temperature: -10°C to 40°C
  • Humidity Range: 15% to 95% relative humidity
  • Plastic Material: UL 94 V0 flame retardant
  • Dimensions – Product: 150mm x 55mm
  • Dimensions – Boxed: 180mm x 155mm x 62mm
  • Weight: 336g (product only), 402g (boxed)
  • Guarantee: 5 years

Downloads

Ei3016 Data Sheet

Download

Ei3016 Instructions

Download

Ei3016 BIM

Download

Tried and tested

The Ei3016 Optical Smoke Alarm contains our tried and tested high performance optical smoke sensor, which is best for detecting slow, smouldering fires. In addition, the smoke chamber design, integrated insect screen and unique automatic dust compensation reduce the risk of false alarms.

AudioLINK data extraction

The Ei3016 Optical Smoke Alarm contains AudioLINK technology, which allows you to extract real time data from the alarm using its sounder directly to a smartphone or tablet via an App. A simple to read report is generated displaying details such as activation dates, sensor status and alarm life, that can be emailed to help form part of property records.

SmartLINK compatible

The Ei3016 Optical Smoke Alarm is SmartLINK compatible, Simply plug in an Ei3000MRF module for wireless interconnection, data extraction and real-time notifications of alarm activations and events via the SmartLINK Gateway and Portal.

Dust Contamination

The alarm has a unique self-monitoring dust compensation mechanism incorporated into its software, which will allow the alarm to tolerate up to twice as much more dust contamination than a conventional optical alarm. The optical sensor chamber continually self-monitors minute changes in dust levels. If the dust accumulates to a certain level, the alarm automatically recalibrates the alarm trigger point.

Future Proofing

The Ei3016 Optical Smoke Alarm Heat Alarm is fully compatible with all other Aico alarms and accessories whether a system needs upgrading or an existing system needs expanding; and works with either hard-wired, RadioLINK or hybrid interconnecting systems.

  • Sensor Type: Optical
  • Supply Voltage: 230V AC, 50Hz
  • Power Consumption: 0.25W (standby)
  • Battery Back-up: Rechargeable lithium cells
  • Sound Level: 85dB(A) at 3m
  • Button Test: Checks sensor, electronics and sounder
  • Silence Function: Silences alarm for 10 minutes
  • Silence Function: Silences fault beeps for 12 hours
  • AudioLINK: Enabled
  • SmartLINK: Compatible via the Ei3000MRF Module
  • Indicator LED’S: Green – power. Red – alarm/ silence mode/ memory. Yellow – fault event
  • Memory: Records last alarm event
  • Fixing: easi-fit base (supplied)
  • Operating Temperature: -10°C to 40°C
  • Humidity Range: 15% to 95% relative humidity
  • Plastic Material: UL 94 V0 flame retardant
  • Dimensions – Product: 150mm x 55mm
  • Dimensions – Boxed: 180mm x 155mm x 62mm
  • Weight: 336g (product only), 402g (boxed)
  • Guarantee: 5 years

Ei3016 Data Sheet

Download

Ei3016 Instructions

Download

Ei3016 BIM

Download
