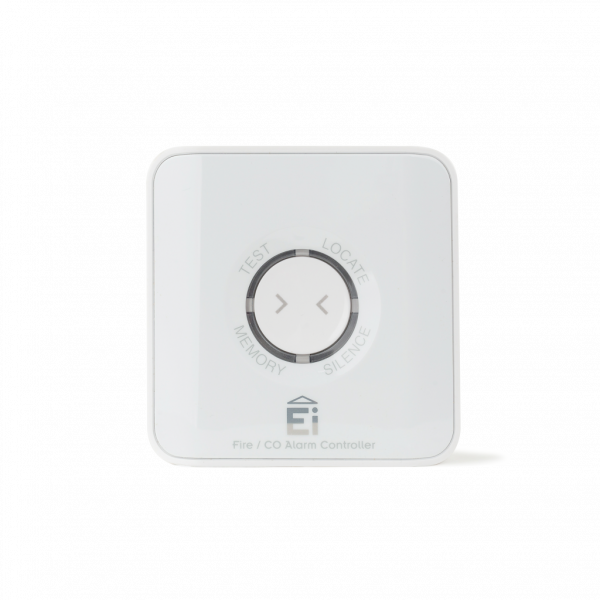

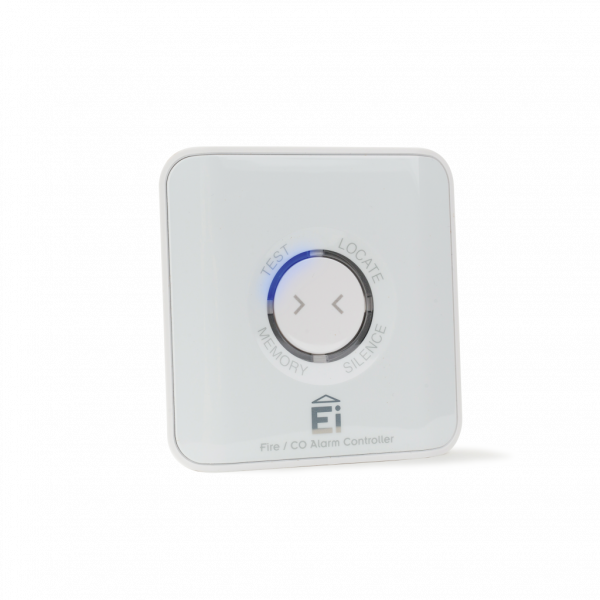

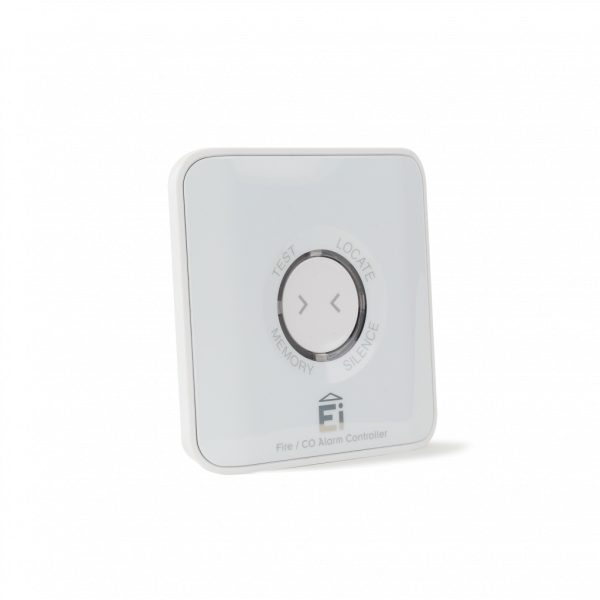

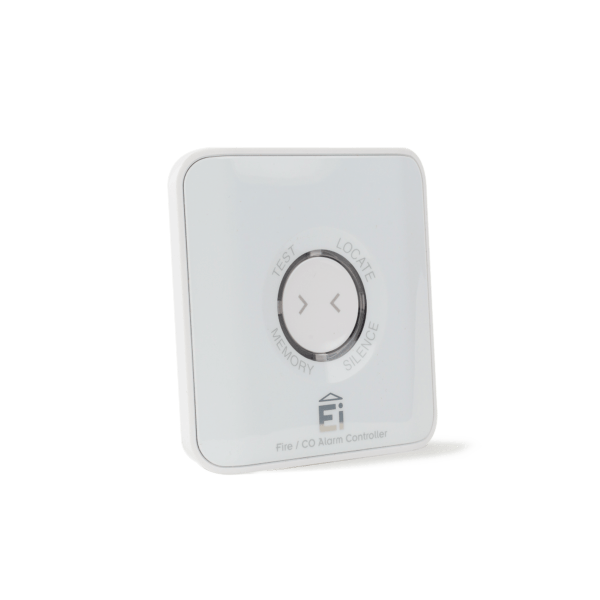

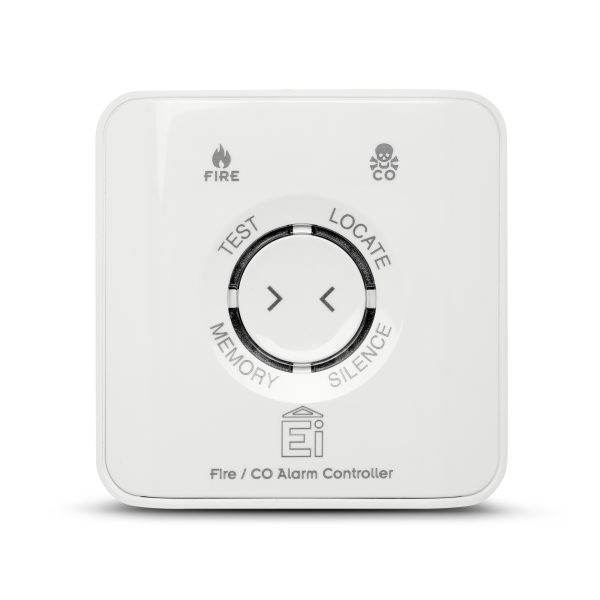

Ei450 RadioLINK Alarm Controller

  • Battery powered by a sealed in Lithium cell
  • 10 year life
  • Completely wire free installation
  • Connects wirelessly with all other Aico wireless interconnection products
  • LEDs for a visual display of Fire or Carbon Monoxide alarm activation
RadioLINK

Product Description

The Ei450 is used to control all the alarms in a system from one place. We highly recommend fitting a control switch if you have smoke, heat and carbon monoxide alarms on the same system as it’s essential that you can tell which alarm has sounded. From then you can identify which danger is present and the action you should take.

The Ei450 contains LED’s which clearly display which danger has activated the alarm – helping to you take the appropriate action as quickly as possible.

Control Switch’s increases the flexibility and user friendliness of the alarms by allowing the user to remotely Test, Locate and Silence alarms in the system:

  • Test – The alarm system
  • Locate – The alarm that has been activated
  • Silence– Any nuisance alarms

The Ei450 is powered by a tamper proof, sealed in lithium cell giving a completely wire free installation with a 10 year life and connects wirelessly using RadioLINK interconnection technology, so once in place you will need to House Code the switch into the alarm system.

Technical Specification

  • Supply Voltage: 3V Lithium Battery – Powered for life.
  • Battery Life: >10 years (normal operating conditions).
  • Communication: 868.499Mhz RadioLINK protocol.
  • Fixing: Wall mounting – fixtures supplied.
  • Operating Temperature: 0°C to 40°C.
  • Humidity Range: 15% to 95% relative humidity.
  • Button functions:
    • Test – Test alarms.
    • Locate – Identify triggered alarms.
    • Silence – Silence alarms.
  • Indicators:
    • Fire – Illuminates when fire detected.
    • CO – Illuminates when CO detected.
    • EOL – illuminates to indicate End of Life.
  • Memory: Identifies previously triggered alarms.
  • Diagnostics: Walk round test / Extended two minute test.
  • Plastic Material: UL94HB.
  • Dimensions – Product: 90mm x 90mm x 30mm.
  • Dimensions – Boxed: 153mm x 153mm x 40mm.
  • Weight: 110g (product only), 185g (boxed).
  • Guarantee: 5 years.
  • Approvals: CE certified / (RF) EN 300 220-2 / (EMC) EN 301 489-1 & EN 301 489-3 (EMC).

Downloads

Ei450 Data Sheet

Download

Ei450 Instructions

Download

The Ei450 is used to control all the alarms in a system from one place. We highly recommend fitting a control switch if you have smoke, heat and carbon monoxide alarms on the same system as it’s essential that you can tell which alarm has sounded. From then you can identify which danger is present and the action you should take.

The Ei450 contains LED’s which clearly display which danger has activated the alarm – helping to you take the appropriate action as quickly as possible.

Control Switch’s increases the flexibility and user friendliness of the alarms by allowing the user to remotely Test, Locate and Silence alarms in the system:

  • Test – The alarm system
  • Locate – The alarm that has been activated
  • Silence– Any nuisance alarms

The Ei450 is powered by a tamper proof, sealed in lithium cell giving a completely wire free installation with a 10 year life and connects wirelessly using RadioLINK interconnection technology, so once in place you will need to House Code the switch into the alarm system.

  • Supply Voltage: 3V Lithium Battery – Powered for life.
  • Battery Life: >10 years (normal operating conditions).
  • Communication: 868.499Mhz RadioLINK protocol.
  • Fixing: Wall mounting – fixtures supplied.
  • Operating Temperature: 0°C to 40°C.
  • Humidity Range: 15% to 95% relative humidity.
  • Button functions:
    • Test – Test alarms.
    • Locate – Identify triggered alarms.
    • Silence – Silence alarms.
  • Indicators:
    • Fire – Illuminates when fire detected.
    • CO – Illuminates when CO detected.
    • EOL – illuminates to indicate End of Life.
  • Memory: Identifies previously triggered alarms.
  • Diagnostics: Walk round test / Extended two minute test.
  • Plastic Material: UL94HB.
  • Dimensions – Product: 90mm x 90mm x 30mm.
  • Dimensions – Boxed: 153mm x 153mm x 40mm.
  • Weight: 110g (product only), 185g (boxed).
  • Guarantee: 5 years.
  • Approvals: CE certified / (RF) EN 300 220-2 / (EMC) EN 301 489-1 & EN 301 489-3 (EMC).

Ei450 Data Sheet

Download

Ei450 Instructions

Download
