Compatible with:

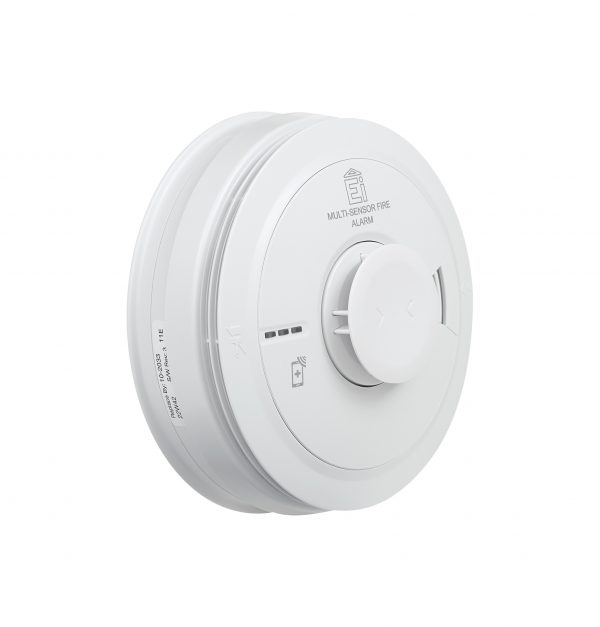

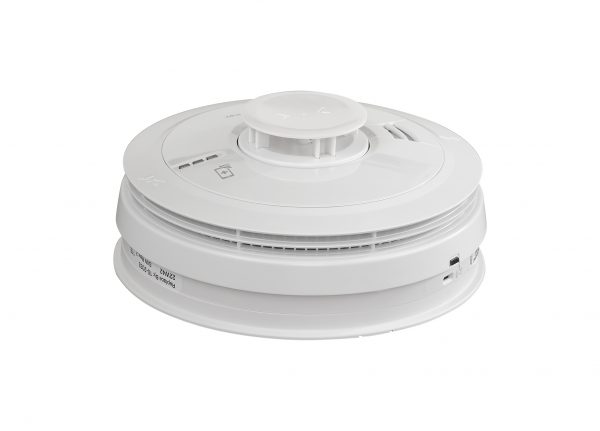

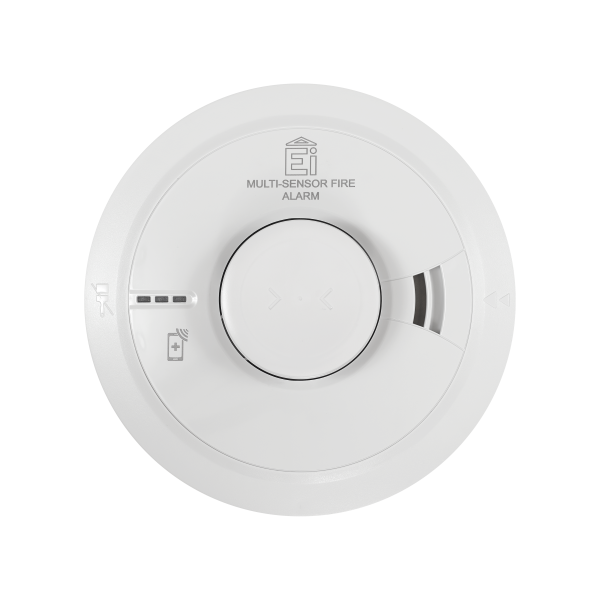

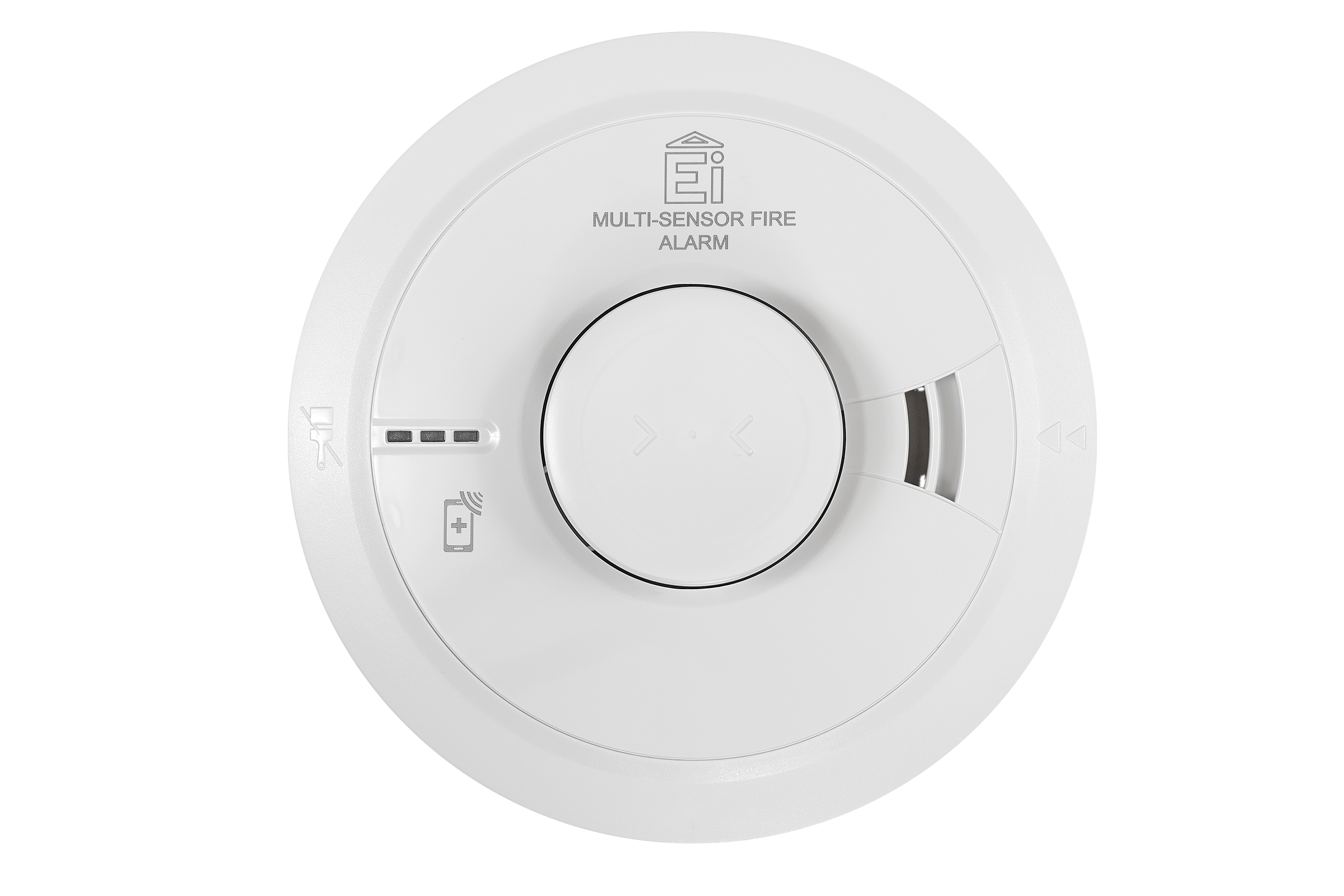

Ei3024 Multi-Sensor Fire Alarm
The Ei3024 Multi Sensor Fire Alarm is built with the same high quality, reliable and proven technology that all Aico Alarms are renowned for, but contains the latest high-tech enhancements, making it one of the most effective domestic Fire Alarms on the market.
- Contains both an Optical and Heat sensor for a total fire response
- Mains powered with a 10-year rechargeable lithium cell back-up
- Add an Ei3000MRF module for wireless interconnection and data extraction
- Compatible with other Aico mains powered devices
- Built-in AudioLINK+ data extraction technology
- Built-in dust compensation with unique self monitoring mechanism
- Grade D1 and compliant with Scottish legislation
- Supplied with an easi-fit base
*When purchased as part of the eco-fit range, this product does not include easi-fit bases, screw packs or dust covers.
Suitable For:
Ei3024 Multi-Sensor Fire Alarm
Ei3024
The Multi-Sensor Fire Alarm
The intelligent alarm software actively monitors both sensors, providing total fire coverage.
Additional benefits of the Multi-Sensor Fire Alarm are:
- Contains two proven, reliable sensors
- Intelligent software allows the sensors to work together
- Intelligent Dust Compensation and mesh insect shield around the Optical sensor to reduce false alarms
The most effective domestic
fire alarm on the market.
Market leaders in product innovation and protection.
Product Description
Smoke alarms have different sensors to detect different fire types. With the Ei3024 Multi-Sensor Fire Alarm sensor choice is simple as this alarm provides total fire coverage. Its combination of a Heat and an Optical sensor means that it can detect all fire types.
The Ei3024 Multi-Sensor Fire Alarm is SmartLINK compatible, Simply plug in an Ei3000MRF module for wireless interconnection, data extraction and real-time notifications of alarm activations and events via the SmartLINK Gateway and Portal.
The Ei3024 Multi Sensor Fire Alarm uses combined Optical and Heat sensors to detect all fire types with an increased resistance to false alarms. Its ability to respond quickly to both fast flaming and smouldering fires, simplifies alarm choice for the designated rooms/areas.
The alarm has a unique self-monitoring dust compensation mechanism incorporated into its software, which will allow the alarm to tolerate up to twice as much more dust contamination than a conventional optical alarm. The optical sensor chamber continually self-monitors minute changes in dust levels. If the dust accumulates to a certain level, the alarm automatically recalibrates the alarm trigger point.
The Multi-Sensor Fire Alarm contains AudioLINK+ technology, which allows you to extract real-time data from the alarm using its sounder directly to a smartphone or tablet via an App. A simple to read report is generated displaying details such as activation dates, sensor status and alarm life, that can be emailed to help form part of property records.
The Ei3024 Multi-Sensor Fire Alarm is fully compatible with all other Aico alarms and accessories whether a system needs upgrading or an existing system needs expanding; and works with either hard-wired, RadioLINK or hybrid interconnecting systems.
Technical Specification
- Sensor Types: Optical & Thermistor
- Supply Voltage: 230V AC, 50Hz
- Power Consumption: 0.25W (standby)
- Battery Back-up: Rechargeable lithium cells
- Sound Level: 85dB(A) at 3m
- Button Test: Checks sensors, electronics and sounder
- Silence Function: Silences alarm for 10 minutes
- Silence Function: Silences fault beeps for 12 hours
- AudioLINK+: Enabled
- SmartLINK: Compatible via the Ei3000MRF Module
- Indicator LEDs: Green – power. Red – alarm/ silence mode/ memory. Yellow – fault event
- Memory: Records last alarm event
- Fixing: easi-fit base (supplied)
- Operating Temperature: -10°C to 40°C
- Humidity Range: 15% to 95% relative humidity
- Plastic Material: UL 94 V0 flame retardant
- Dimensions – Product: 150mm x 66mm
- Dimensions – Boxed: 155mm x 155mm x 70mm
- Weight: 346g (product only), 412g (boxed)
- Guarantee: 5 years
Product Downloads
How-to VideosRelated Products
The 3000 Series detects both Fire and Carbon Monoxide, allowing you to specify a whole property from one range.
